Satelitní přijímač GTMEDIA V9 Prime

Hlavní vlastnosti GTMEDIA V9 Prime

1. Podpora DVB-S/S2/S2X, VCM/ACM/multi-stream/T2-MI, profilu HEVC main 10, AVS+.
2. Podpora BISS auto roll, Full PowerVu, DRE & Biss klíč.
3. Plná podpora Unicable, DiSEqC1.0/1.1/1.2/USALS Motor.
4. Podpora SAT2IP od GTShare APK, DLNA.
5. Podpora vestavěného 2,4G WIFI modulu, Ethernetu a podpory 3G/4G USB dongle.
6. Podpora online filmů, WebTV.
7. Podpora IPTV (Přizpůsobení, Xtream, Stalker).
8. Podpora síťového sdílení Cccam, Newcam, Mgcam.

General
Brand	GTMEDIA
Type	Satellite Receiver
Model	V9 Prime
Main Chip Sets
CPU	770MHz Dual Core
Flash Memory	64MB SPI Flash
DDR3 Memory	1G bit RAM
TS Demux
Demultiplexer	ISO/IEC 13818-1
Input Bit Rate	Max 100Mbit/s
Video Decode
Video Decode	HEVC/H265 main profile@level 4.1 and main10 profile@L4.1,High tier, MPEG-2 MP@ML, H.264 BP,MP&HP@L3/L4.1/L4.2, AVS Jizhun profile and broadcast profile, MPEG-4 SP profile, advanced simple profile@L5, VC1 SP@ML, MP@HL, AP@L0-3, H263 baseline profile, JPEG decoder
TV System	Automatic PAL/NTSC conversion
Aspect Mode	Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
Video effects	Standard, Default, Vivid.
Video Resolution	1080P, 1080I, 720P, 576P, 480P, 576I, 480I
HDMI Color Space	RGB, YUV422, YUV444, Auto
Audio Decode
Audio Decode	MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH
Sound Mode	LEFT/RIGHT/STEREO/MONO
Sampling Frequency	32KHz,44.1KHz,48KHz
Audio Out	LPCM Out, BS Out
Hardware Specifications
Panel display: 4-digit white LED display (Support function display)
LED Indicator: Power ON: Green; Standby: Red
Button: POWER
Wifi: Built-in 2.4G WiFi Support IEEE 802.1.1b/g/n
IR: Exit IR for 38KHz, Infra Remote control
Rear Panel: LNB IN (Frequency Range950MHz to 2150MHz), HD OUT (up to 1080P), AV OUT (3-pin 3.5mm jack), 1*USB HOST, 1*RJ45, 1*CA Card, DC IN (DC12V/1.5A)
DVB-S/S2 Specifications
System standard: ETS 302 307
Frequency Range: 950~2150MHz for DVB-S/S2/S2X baseband demodulator
LNB Power and Polarization: DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection
Input Level Range: -80dBm ~ -20dBm (average power)
Symbol Rates: DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Forward error correction rate: 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Symbol Rates: 2 ~ 90MSPS(Code Rate 1/2)
Roll-off factors: Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Code Rates: 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates
ANT. Connector: Connector: IEC TYPE F, Input Impedance:75 Ω
Software Features
Standard	Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard
Channel Search	Support automatic network search for new added transponders
Channels Number	6000+ channels TV and Radio programmable
Channel	Recording one channel, can view another channel under the same TP, Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort)
Favorites	31 different favorite groups selection
OSD Language	English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Arabic, Persian, Thai, Vietnam, Czech, Armenian, Georgian, Ukrainian, Albanian, Hungary, Malay, Indonesian, Dansk, Greek, Serbian.
OSD Color	32-bits OSD with anti-flickering
OSD Setting	Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3.
Other Setting	Sets up multiple habitual operation Settings
Parental Ctrl	Parental control for channels
Easy Menu	Plug and Play installation, with an easy to use Menu System
EPG	Fully support to 7 days Electronic Program Guide(EPG)
Subtitle	support DVB EN300743 and EBU
Teletext	support DVB ETS300472 by VBI
SoftUpgrade	Software upgrades through USB port, or FTP upgrade.
Time Set	Time set by GMT offset automatic and manual, Summer Time support
Timer	5 event timers, off/Once/Daily/Weekly Mode
USB Decode
USB 2.0	Support FAT/FAT32/NTFS big capacity hard disk
PVR Option	USB 2.0 for PVR, TIMESHIFT, media files playback
Media Codec	TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
Audio Codec	WMA, MP3
Photo Codec	JPG, BMP, PNG, GIF
Power
Power Supply	AC 100V ～250V, 50/60Hz
Power Consumption	10W in operation, <1 W Standby Power Mode

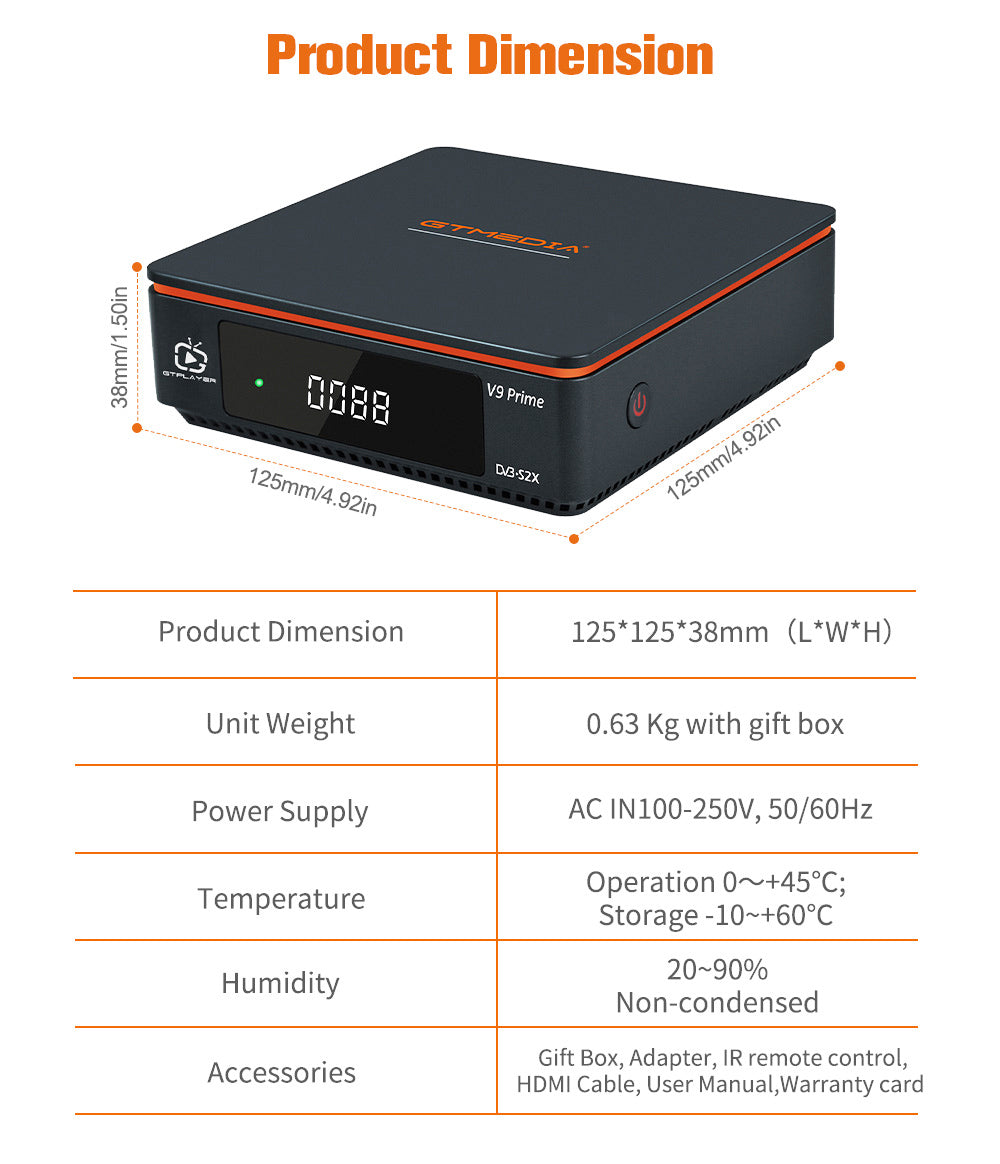

Dimensions & Weight
Product Weight	200g
Package Weight	600kg
Product Size	12.5 x 12.5 x 3.8cm
Package Size	22 x 16 x 6.3cm

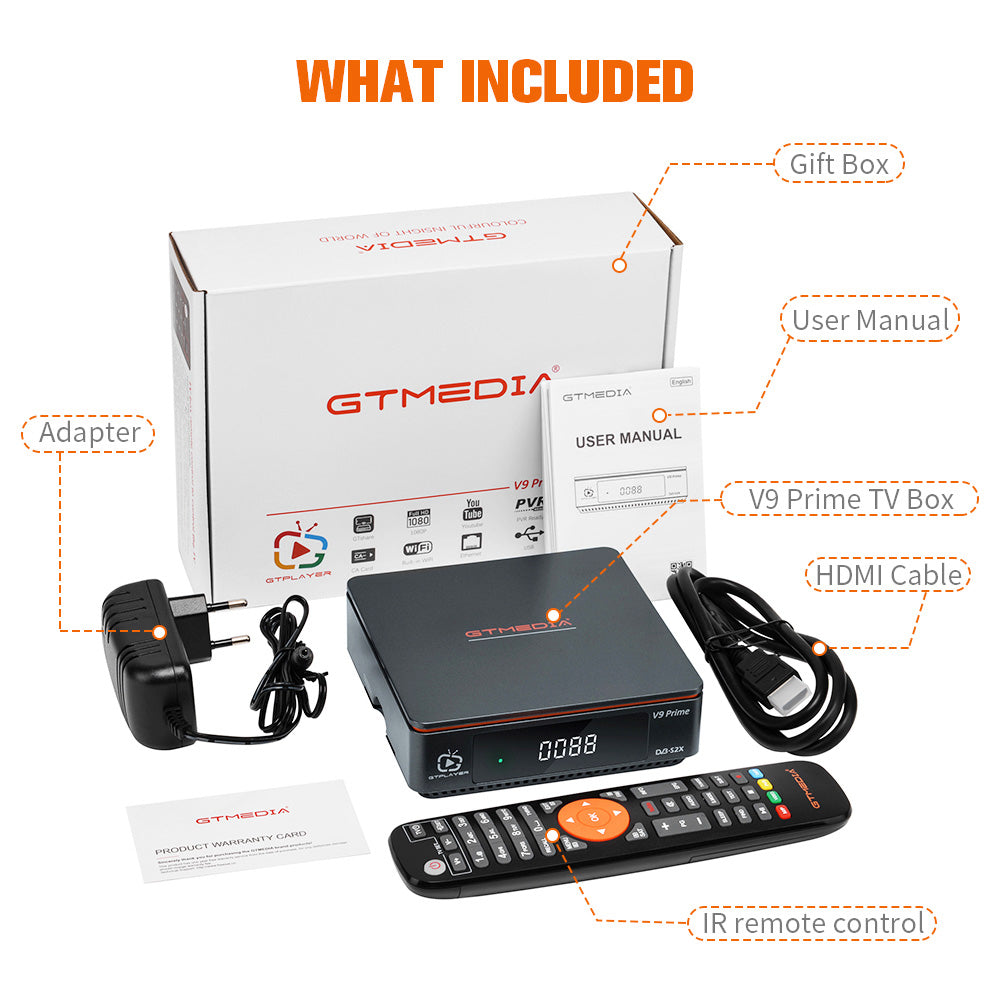

Package Contents
1 x Satellite Receiver
1 x Power Adapter
1 x IR Remote Control
1 x HDMI Cable
1 x Warranty Card
1 x User Manual
