Digitální multimetr BSIDE A10

Hlavní body BSIDE A10

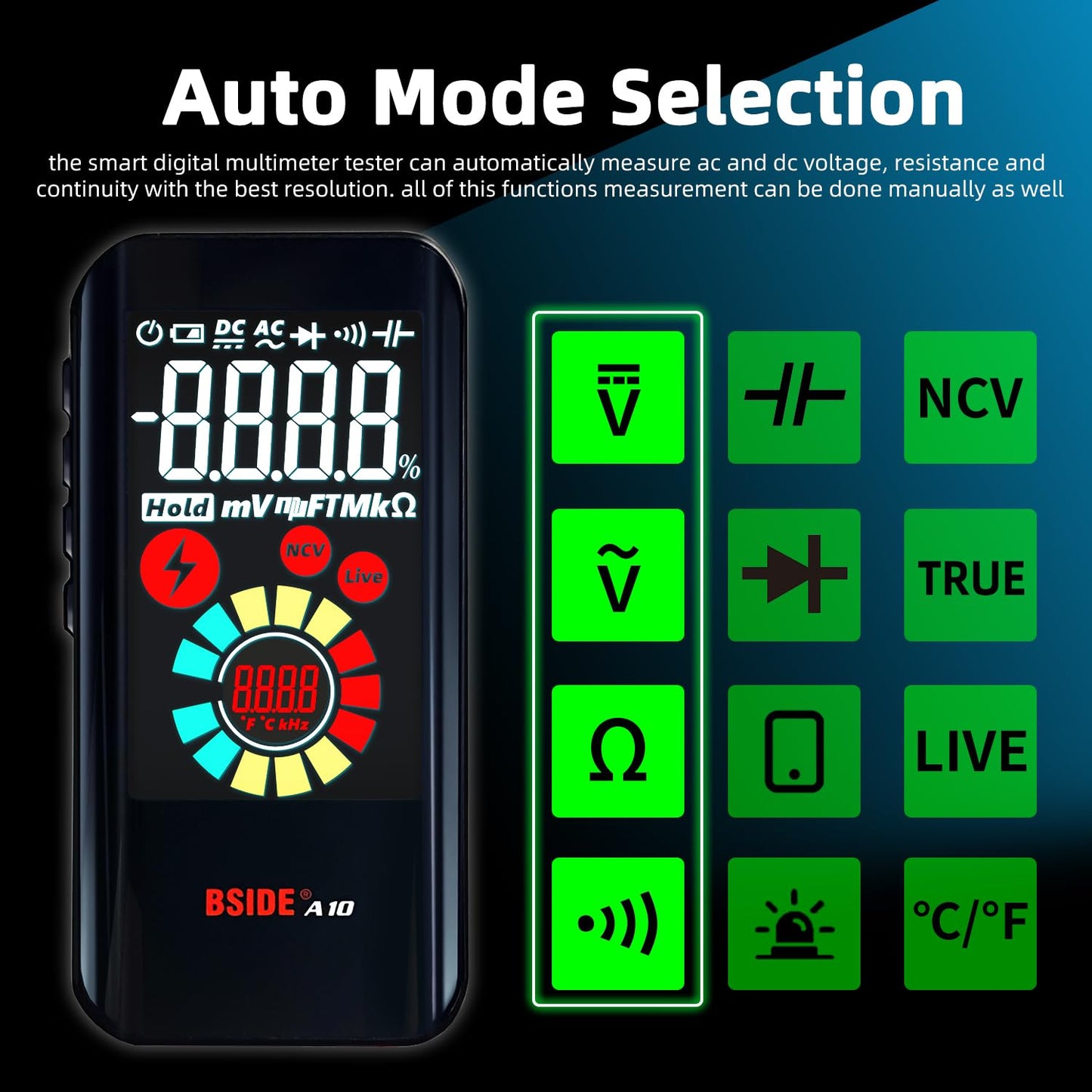

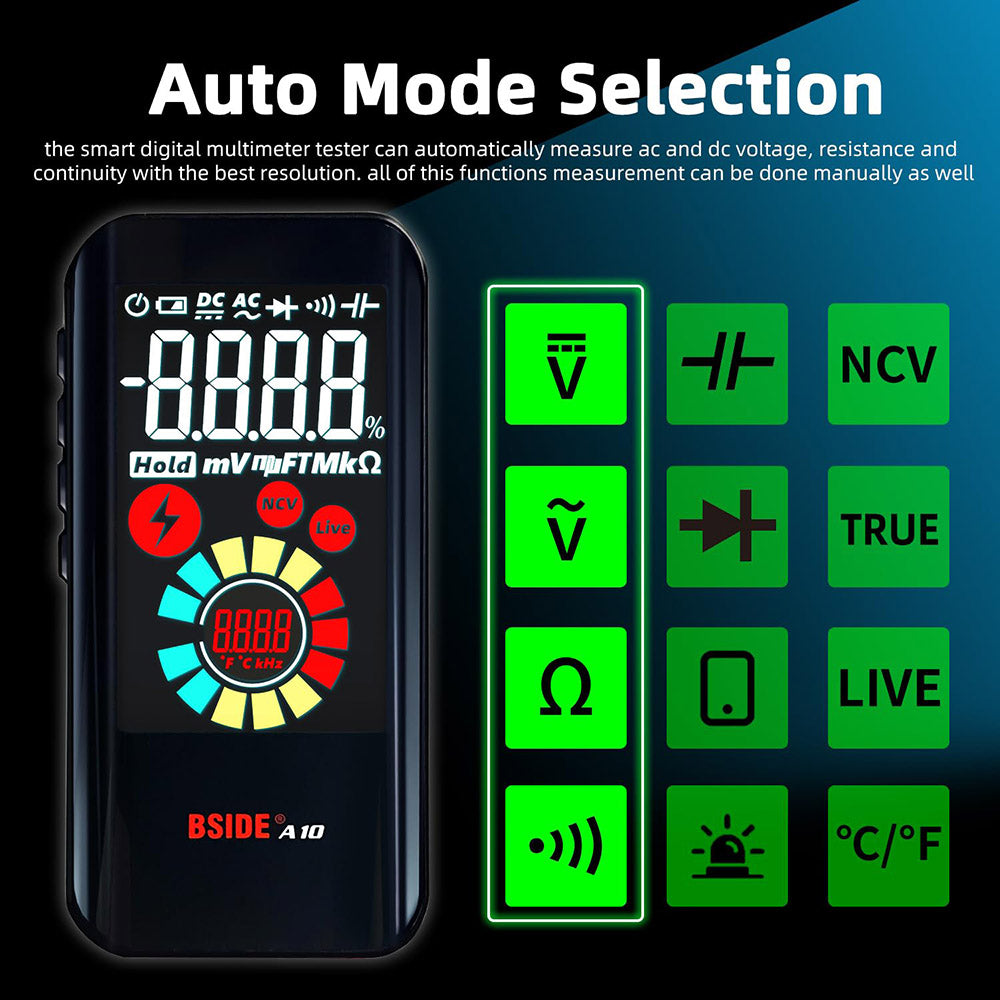

Malý multimetr s dobíjecím barevným displejem, plně inteligentní detekcí napětí, odporu, kapacity, uchováváním dat diod a detekcí specifických obvodů pro elektrikáře.

General
Brand	BSIDE
Type	Digital Multimeter
Model	A10
Color	Black
Specification
Max Display: 9999 counts
True RMS

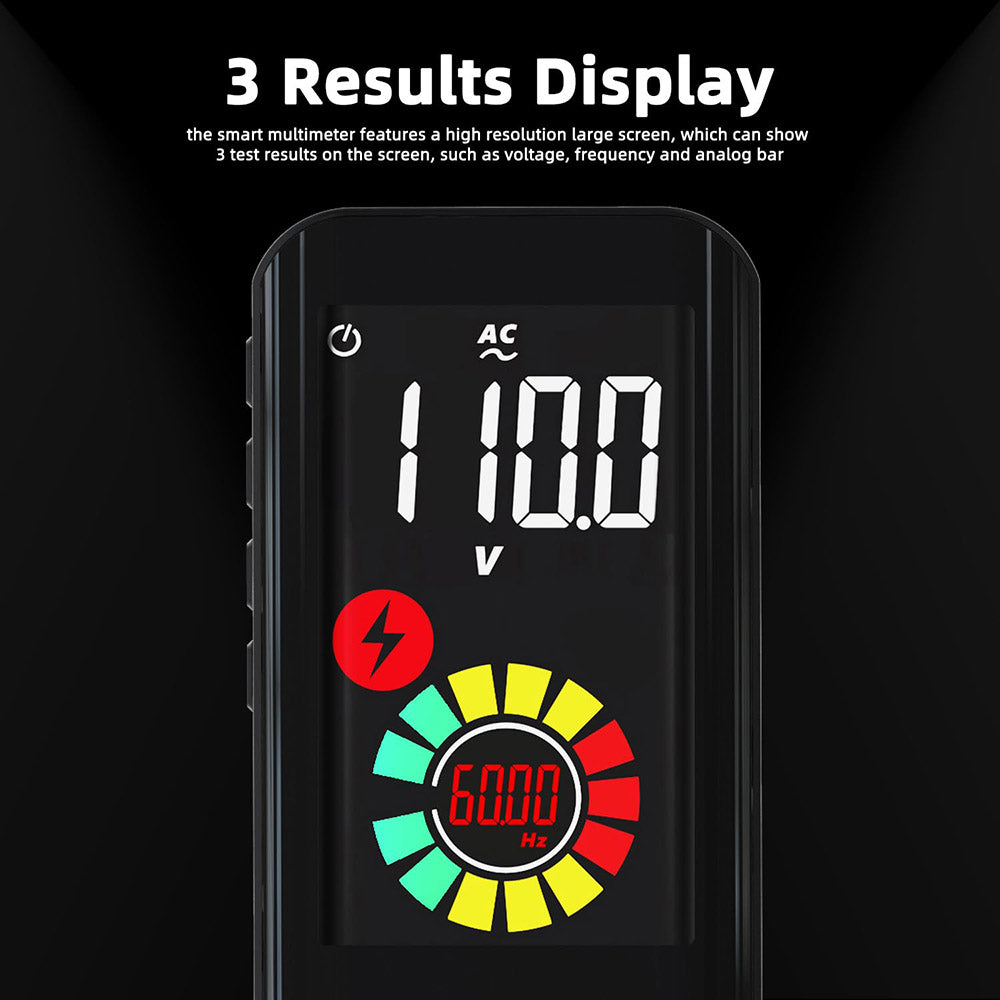

Display Type: EBTN Color screen
Screen: 3.2 inch

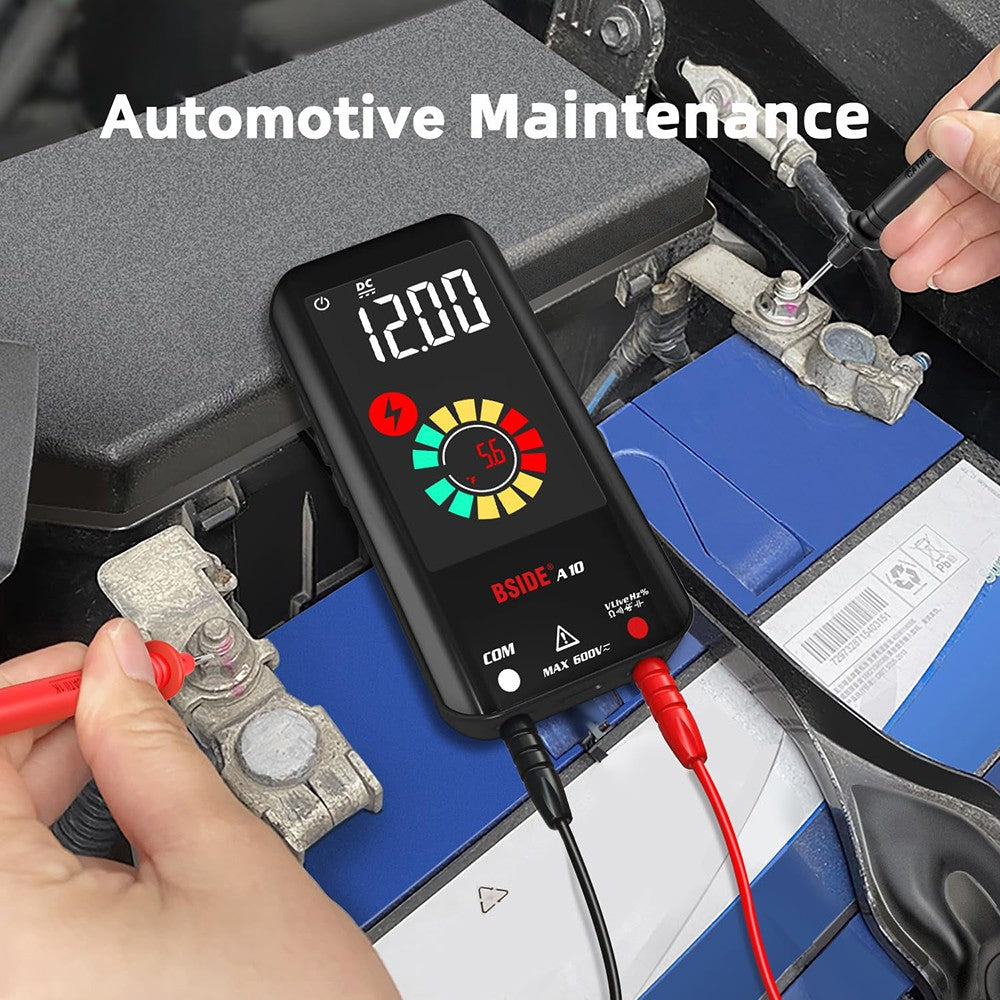

DC Voltage: 0V-600V ±(0.8%+3); Resolution: 0.001V

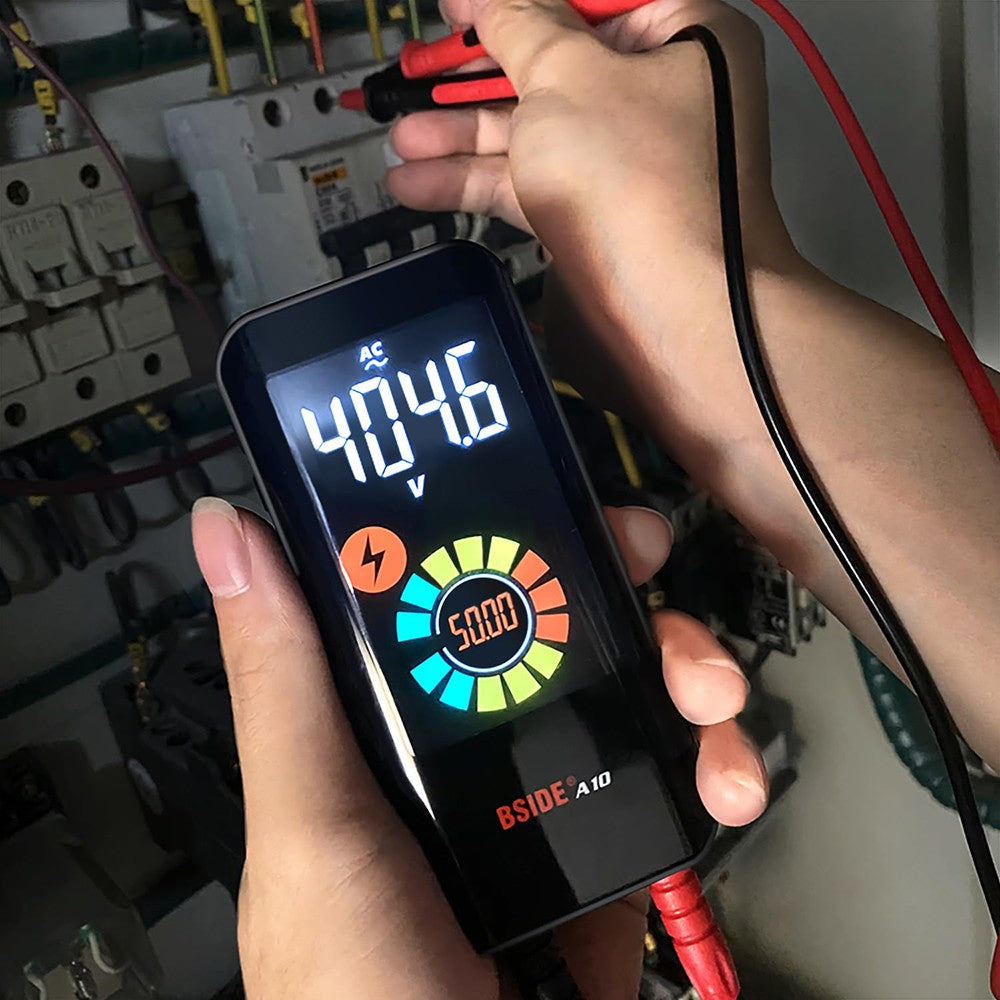

AC Voltage: 0V-600V ±(1.2%+5); Resolution: 0.001V
Resistance: 0.1Ω-10MΩ ±(1.2%+3), 10MΩ-60MΩ ±(2.0%+10); Resolution: 0.1Ω

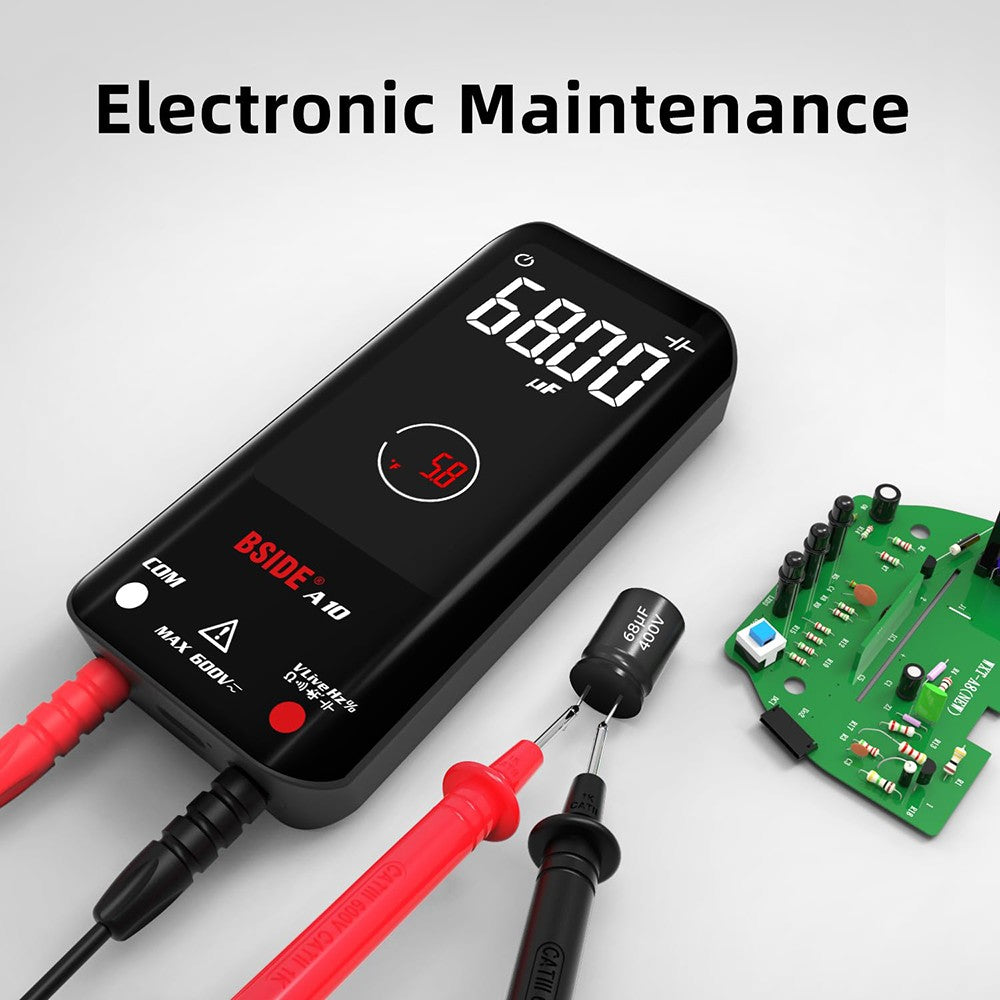

Capacitance: 1nF-1.00mF ±(3.5%+8), 1mF-60.00mF ±(4.5%+10); Resolution: 0.001nF
Frequency: 10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz
Duty Cycle: 0.1%-99.9% ±(1.5%+5) ; Resolution: 0.1%

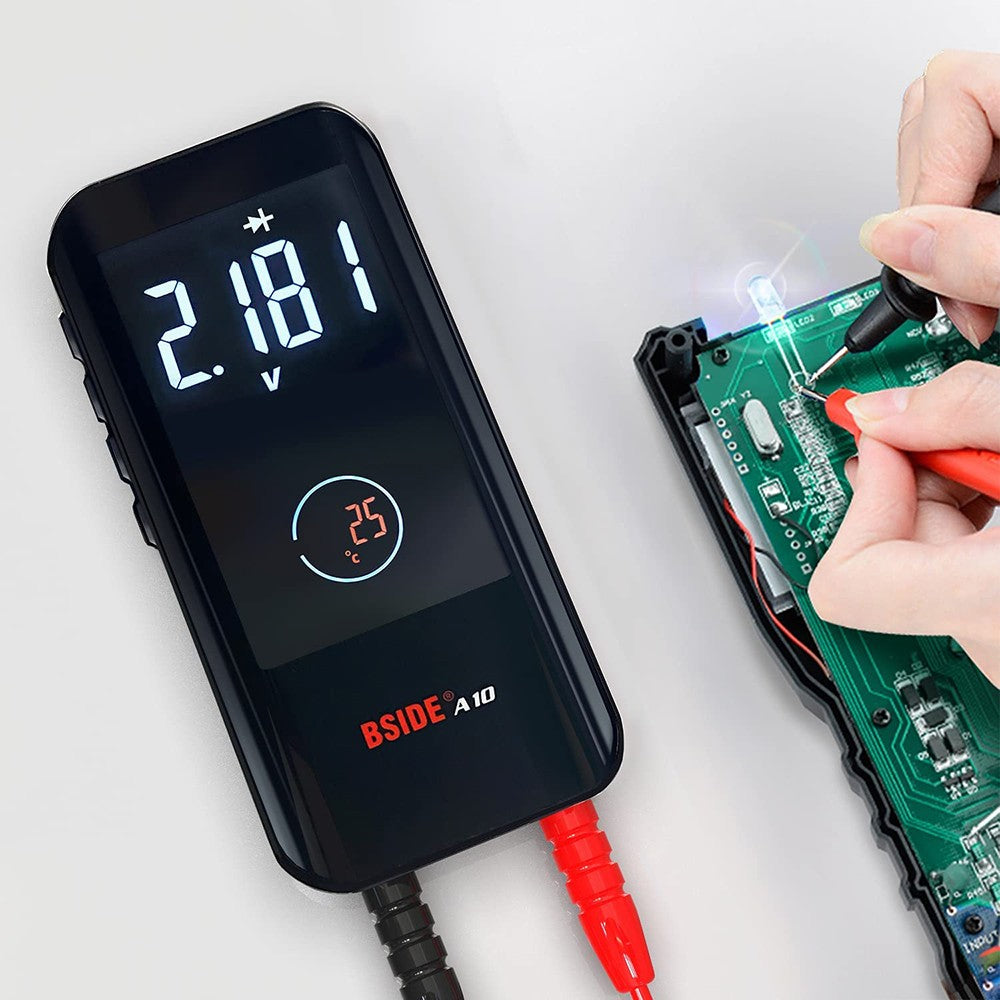

Diode: Auto-identify diode if less than 3.0V
V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe
Live Check: alarm beep sounds, LCD screen display stripe
Continuity: If the resistance is less than 50Ω, the beeper sounds

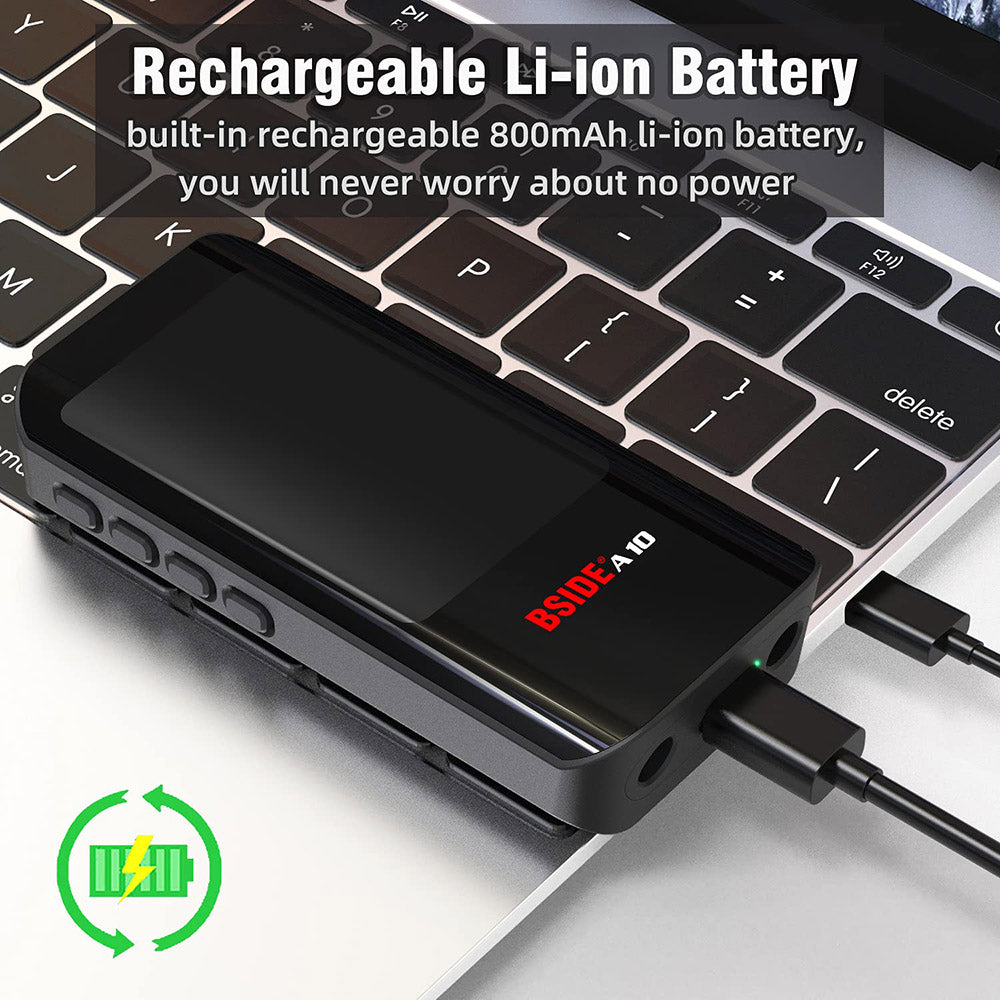

Power: Rechargeable 3.7 V * 1 battery (built-in)
Weight & Size
Product Weight	97g
Package Weight	259g
Package Size(L x W x H)	180*83*40mm

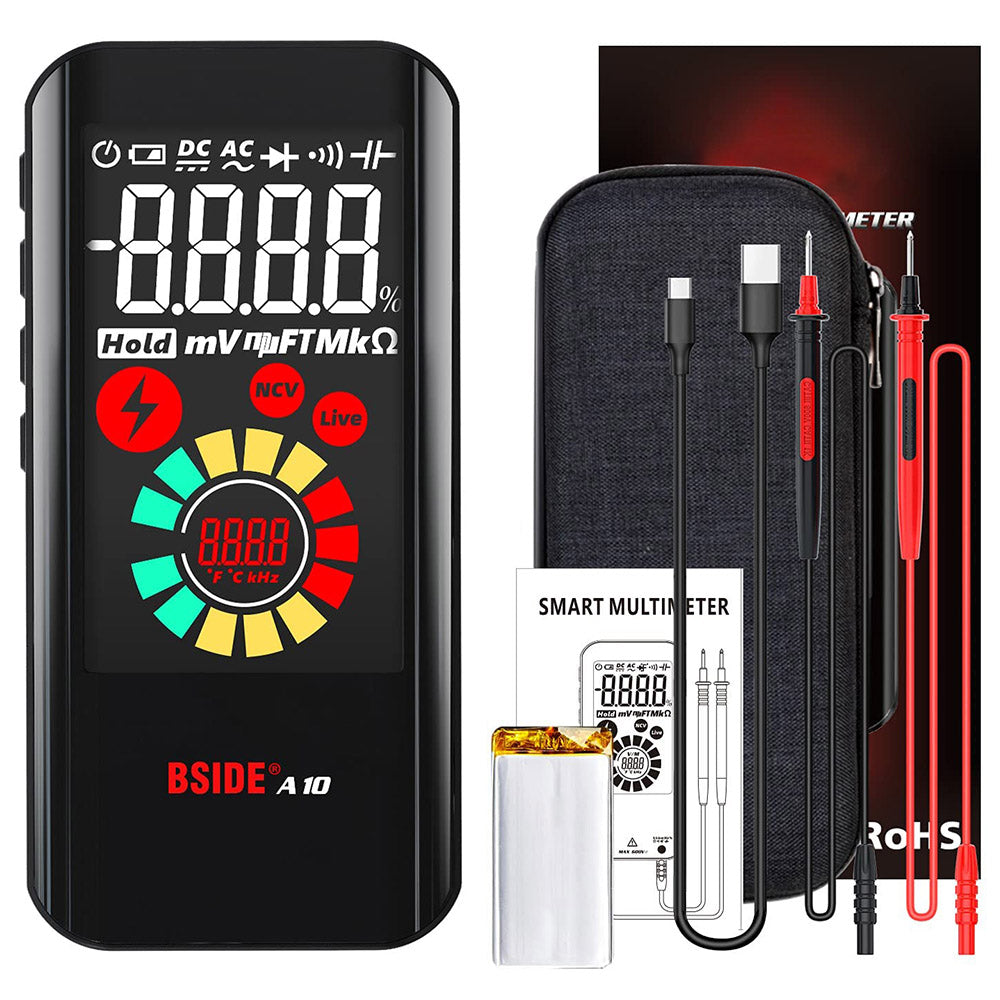

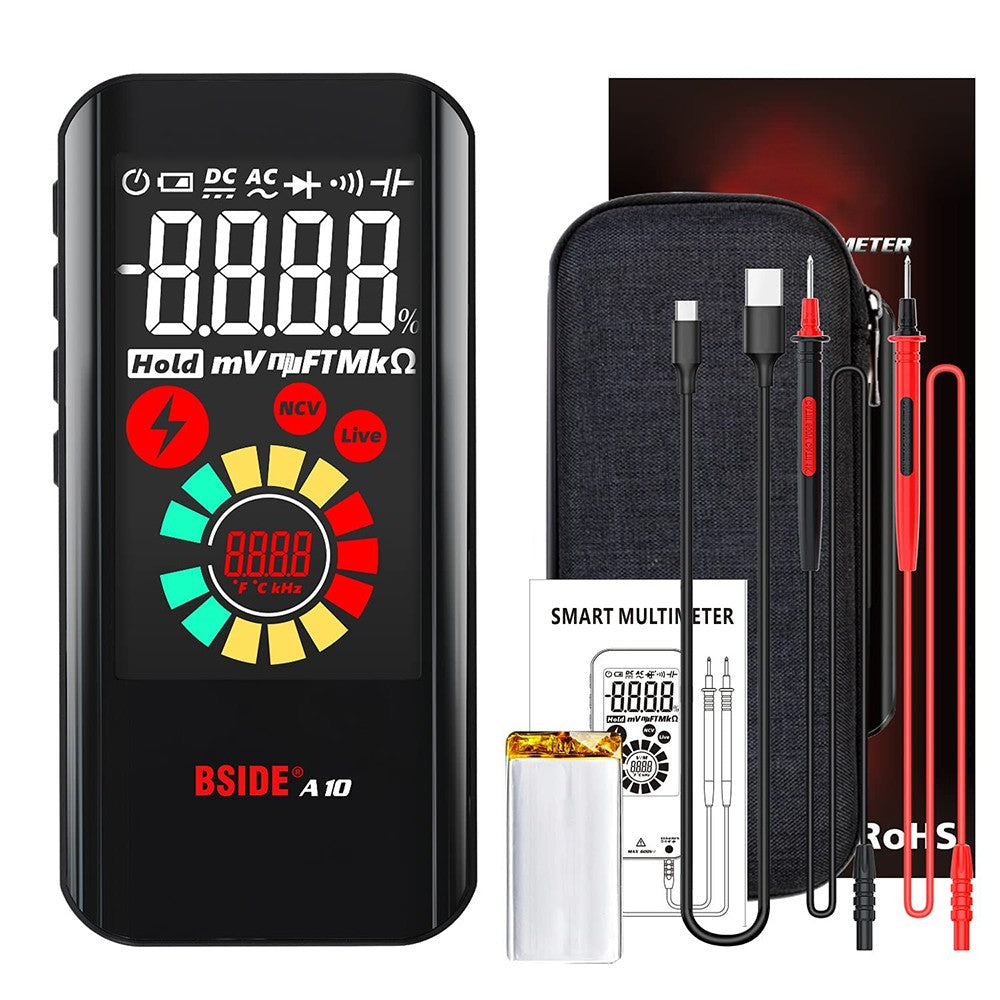

Package Contents
1 x Digital Multimeter
1 x User Manual
